- 32bit microprocessor which with stronger computing ability and faster running speed.
- Multiple protections: start-up,over-heat,low-voltage cutoff,signal loss,phase loss and so on.
- Stronger BEC output up to 8A/5.5V continuous and peak to 18.
- Super smooth, accurate , programmable throttle linearity and throttle response.
- Supporting high RPM motors , programmable by LCD card and transmitter.
Key Features :
Protections:Phase Loss Protection,Signal Loss Protection,Over-Heat Protection,
Synchronous rectification which with more energy-saving and high efficiency.
Functions programmable : Brake,cut off voltage,softstart,motor direction etc.
Adjustable softstart according to different RPM and Pole Motor.
Supporting High RPM and Pole Motor.
Description :

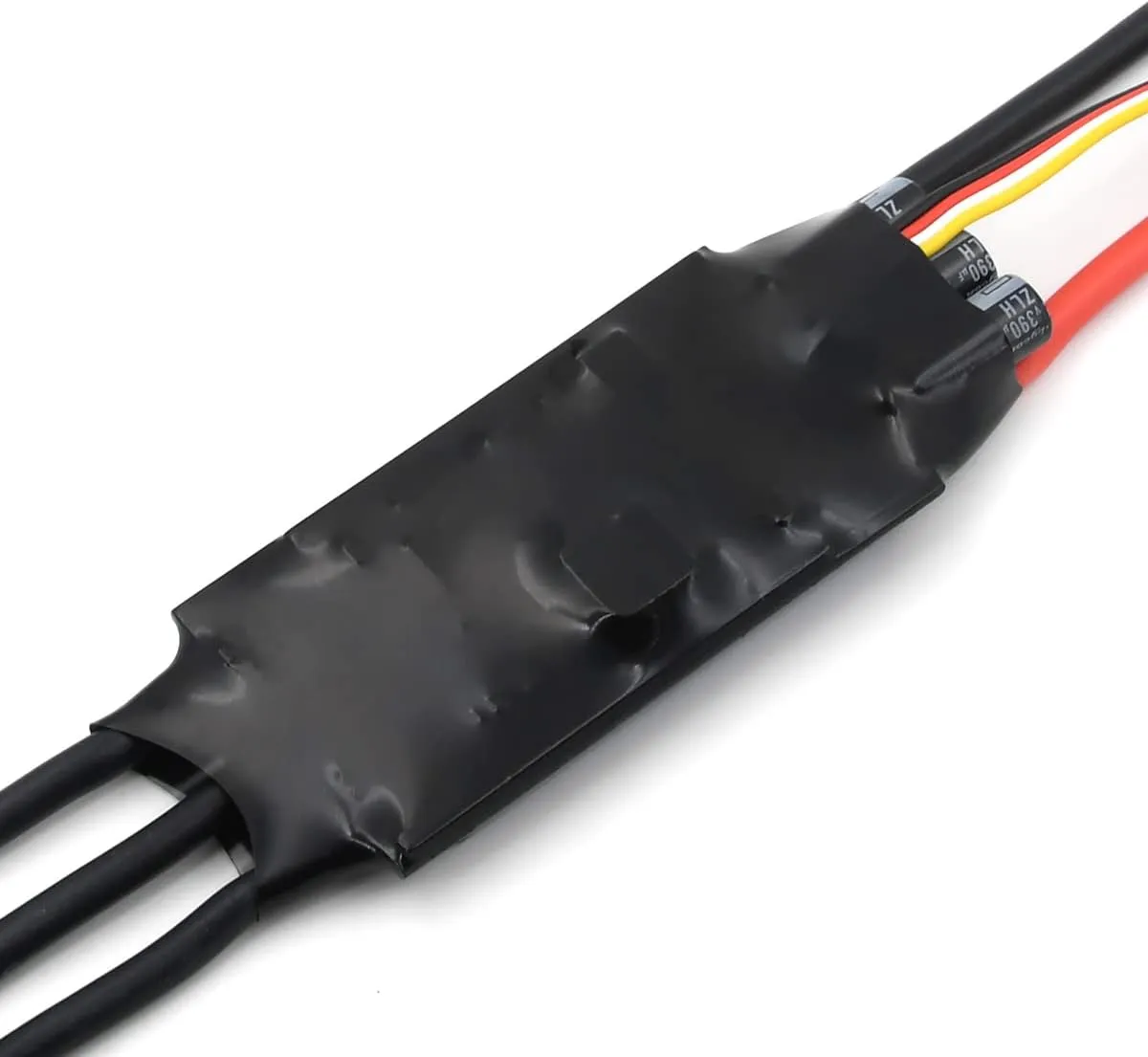

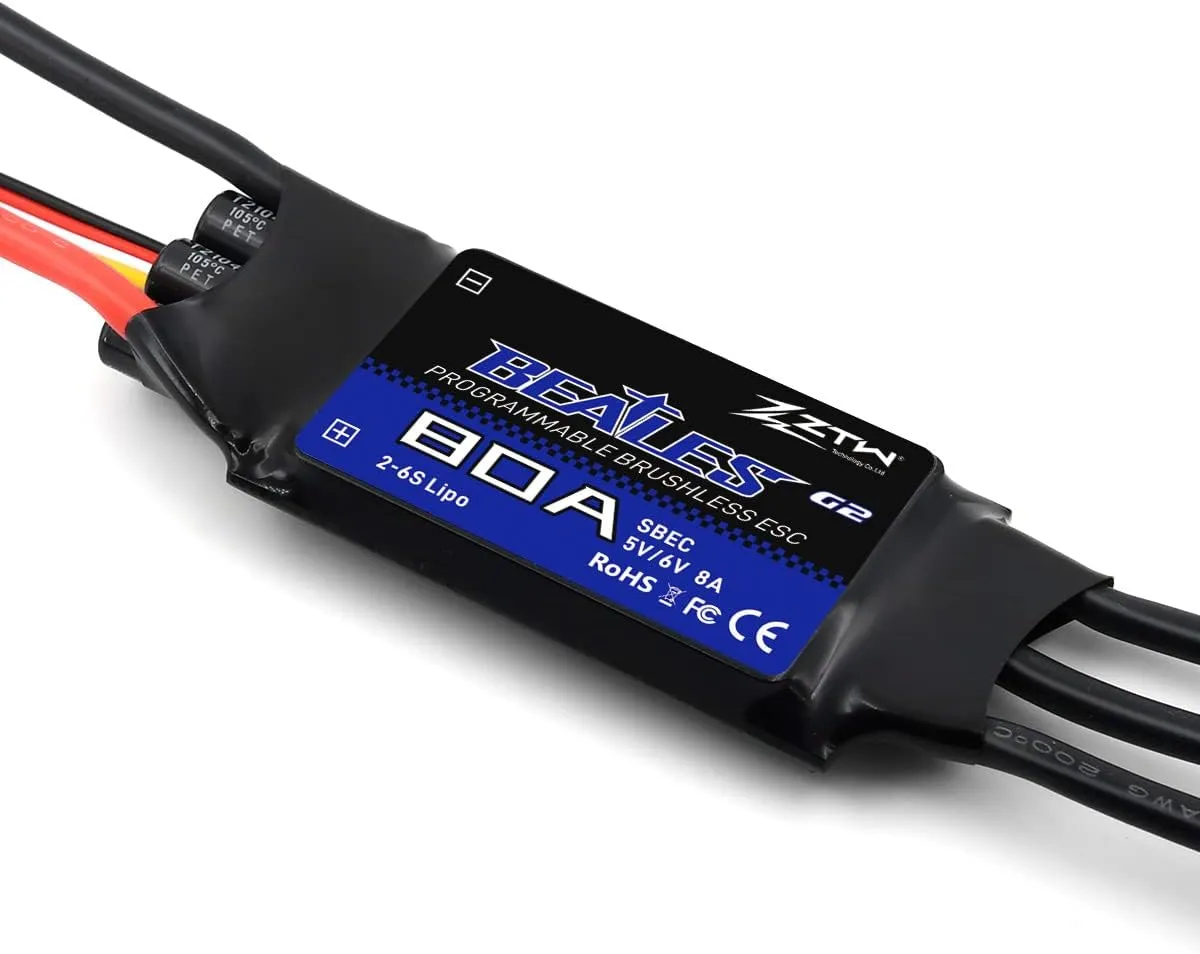

Size:90mm x 37mm x 10mm (LxWxH).
Battery : 2-6S Lipo / 5-18NC.
Voltage : 7.6V-22.8V.
Current : 80A ,peak 100A for 10 seconds.
BEC output : 8A/5V or 6V, peak 18A
Weight : 75g.
Motor Type : Brushless (no brushed)
RPM support：200,000 for 2 P ,82,000 for 6 P,42,000 for 12 P.
Connectors:
Power side: XT60
Motor side: 3.5 bullet female
Package includes :
ESC x 1
User Manual x 1
Application
RC Airplane with inrunner motor or EDF system.
RC Muliticopter multiroter or any other DIY project of industry.
Note !!
Please do make the throttle calibration for the first time using or changed the TX.
ZTW and HAWK HOBBY have 100% free warranty for this ESC.
