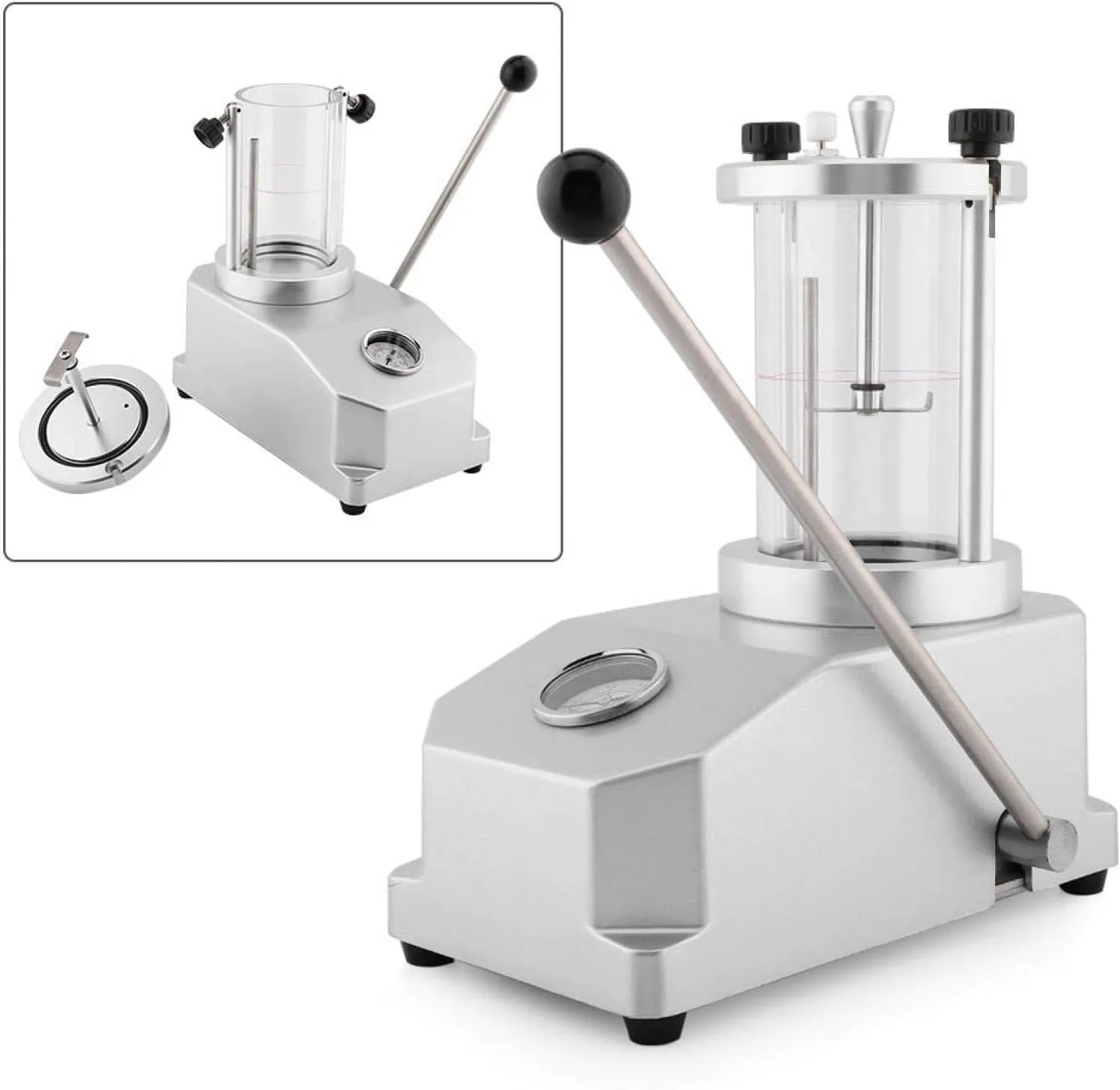

- Effortless:Our watch case water resistance tester is designed for simplicity,making it easy for you to operate,even if you're not a watch expert.
- Dual Watch Testing:With the capability to test two watches simultaneously,this tester offers added convenience.You can efficiently assess the water resistance of multiple watches.
- Transparent Cylinder for Clarity:The transparent cylinder provides a clear view,allowing you to easily identify any areas of the watch that may not be adequately sealed.
- Water Resistance Evaluation:This device is purpose built for evaluating the water resistance of watch cases.It offers a method to determine.
- Adjustable Air Pressure:Our tester allows you to fine tune the air pressure up to 6 ATM(atmospheres).This flexibility means you can assess watches with water resistance ratings of up to 6 ATM.
Specification:
Condition: Brand New
Material: Metal
Color: Shown As Pictures
Pneumatic Test Range: 0.3 6.0bar
Maximum Test Diameter|: 65mm/2.6inch
Maximum Test Height: 72mm/2.8inch
External Air Pressure Connection: 6N
Cylinder Maximum Pressure: 10 bar
Cylinder Outer Diameter: 80mm/3.2inch
Cylinder Inner Diameter: 65mm/2.6inch
Cylinder Height: 138mm/5.4inch
Size: Approx. 24 * 14 * 27cm/9.5 * 5.5 * 10.6inch
Weight: Approx. 3800g
Package List:
1 * Watch Waterproof Tester
Principle:
Pressurization to the sealed box can simulate the state of the product dozens of meters underwater. Pressure difference between the inside and outside of the product will be generated after the pressure relief of the sealed box. Air bubbles can be visually seen in the leaking product.
Usage:
1. Pull the watch lever as far as possible
2. Loosen two screws and the lid
3. Pull water into it until reaching the designated red line of the bucket
4. Hang your watch on the pole
5. Fix the lid and tighten the screws
6. Shake the pressure lever to achieve 3 air pressure (the official standard of Swiss watch industry), and wait for three minutes to let air enter the whole watch
7. Press down the pole, let the watch immersed in water, press down the exhaust button, let the air out
8. When the pressure drops, obs
